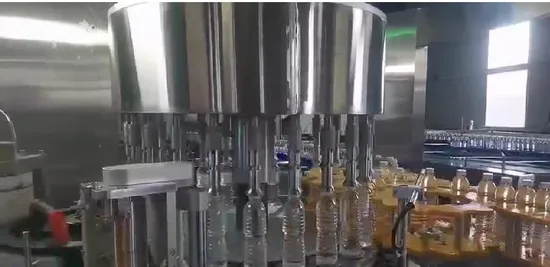

OPP Labeling Machine Packing Machine

OPP Labeling Machine Packing Machine

Product Description Bottle positioning device Bottle support unit Electric cabinet E+L guiding system Drive of servo mot;
Send inquiry
Basic Info.
Model NO. A-PEF99
Application Cosmetics, Drinks, Cleaning, Detergent, Tea, Dairy Products
Type Automatic Labeling Machine
Driven Type Mechanical
Classification Automatic Angular Labeling Machine
Sleeve Machine 5000-15000bph
Transport Package Standard Export Package
Specification CE and SGS
Trademark stonemechanical
Origin Zhang Jia Gang, Jiangsu, China
HS Code 84771090
Production Capacity 100 Set/ Year
Product Description

Product Description

  1. Bottle positioning device
  2. Bottle support unit
  3. Electric cabinet
  4. E+L guiding system
  5. Drive of servo motor
  6. Hot glue supply unit
  7. Gluing roller unit
  8. Labelling device
  9. Rotary drive mechanism
  10. Tension control device
  11. Label-roll dispenser
  12. Label cutting unit



1 fully automatic labelling machine for wrap around labeling from label roll with hot melt glue.
It is suitable for round, square, oval and other anomalous bottles
It can affix labels on filled bottles.
Type: R-PHR16RollFED 16-784-1RA

Technical Data
Model: R-PHR16

Type declaration:
16 = Numbers of bottle support
780 = Diameter of bottle turn plate
1RA = Numbers of label-roll dispenser
Machine type include:
  1. Rotary drive mechanism
infeed-screw, star wheels, infeed guide plate, bottle guiding parts are produced of noise reducing and nonabrasive synthetic material. Rotation positioning device, bottle support, timing belt
  1. Safety system
  2. Entire machine is covered by stainless steel
  3. Electrical head adjustment for bottle size
  4. SIEMENS driver
  5. Stainless steel electric cabinet equipped with professional defrost air conditioner, SIEMENS true color touch screen, SIEMENS motion control system, import vacuum pump
  6. Labelling stations

Labelling stations:
 Aggregate for labelling from the roll
  1. Label cutting unit:
  2. Labelling drum unit
  3. Label drive mechanism: SIEMENS servo motor
  4. Label inspection device: SUNX colour contrast sensor
  5. hot melt supplying device
glue consumption:100,000 pieces/1kg(when label width is 50mm), single consumption: 1 piece/0.01g
  1. Labelling adjustment device: MAY planet decelerator
Label dimensions:
Minimum thickness: 0.035mm
Minimum length: 160 mm
Maximum length: 360 mm
Maximum height: 180 mm

Range of adjustment 16,000 BPH when label length 250mm

Length of conveyor inside the machine
 2000 mm
  1. Machine is equipped with a frequency controller for external drive, which can be controlled via the machines control panel.
  1. Machine is in standard design not equipped with an internal drive for bottle conveyor.

Electrical System:
Drive Three phase 380V / 50HZ
The drive is frequency controlled.
Control voltage 220V AC,(240VAC, Single Phase, 50Hz)24 DV
The electrical system is controlled by a programmable PLC
Total power 10Kw
Control panel Machine is equipped with firmly installed control panel
Touch screen controlling
control system for change over
state of equipment, running parameters, system
Performance is visually displayed.
Control cabinet The electrical installation is in delivering conditions totally established and checked. The splash-proof switchbox is made of stainless steel, totally integrated into the machine and easy to access.

Compressed air: Air pressure: 0.6MP
Air consumption: 0.6m3/Min

Lubrication: Drive, main and Star-wheel shafts, infeed screw bearing unit and all gear wheels in the substructure are lubricated via a central lubrication strip.

Safety system:
  1. Safety: Reduced noise and casualty insurance is guaranteed by complete and elegant protective covering. Machine can be slowly jogged for maintenance and adjustment works.
  2. Safety protection door
Function:
  1. During operation the machine is working in full automatic mode. Start and Stop, unload and queuing system, frequency controlled speed regulation; label-stop is included and standard.
  2. precise labelling
  3. synchronization belt and cam french curve control rotation of bottle. It is suitable for round, square, oval etc. anomalous bottle
  4. Bottle support is designed for change over in 3 seconds.
  5. Glue roller: netlike idler wheel is stable and reliable to guarantee a perfect gluing and lowers the glue consumption.
  6. Brushing: Each single brush is mounted on a supporting ring, which can be switched totally for each kind of bottle.
  7. Cutting: cutting precision is accurated to within +/- 1mm, the error will be compensated after each lable is cutted to eliminate cumulative error.
  1. Controls: The operating device is ordered openly and well within reach. Performance is visually displayed.
  2. Change over: No tools are needed for change over. The change over is easily reproducible.
  3. Materials: Infeed screw, infeed guide plate, star wheels and bottle guiding parts are produced of noise reducing and nonabrasive synthetic material.
  4. Substructure: The machines substructure consists of a strong mechanical design of steel with adjustable legs. The complete basic rack is covered with stainless steel.


Roll-fed labeler standards:
  1. Rate of label waste: ≤1‰
  2. Efficiency: ≥90%
  3. Deviation of label head and tail: ±1.5mm
  1. Deviation of label up-down position: ±1mm
  2. Deviation of position labelling: ±2mm
  3. Rate of label defect: <1‰
  4. Label cutting accuracy: ±1m
  5. Bottle positioning device
  6. Bottle support unit
  7. Electric cabinet
  8. E+L guiding system
  9. Drive of servo motor
  10. Hot glue supply unit
  11. Gluing roller unit
  12. Labelling device
  13. Rotary drive mechanism
  14. Tension control device
  15. Label-roll dispenser
  16. Label cutting unit

  17. 1 fully automatic labelling machine for wrap around labeling from label roll with hot melt glue.
    It is suitable for round, square, oval and other anomalous bottles
    It can affix labels on filled bottles.
    Type: R-PHR16RollFED 16-784-1RA

    Technical Data
    Model: R-PHR16
    Roll-fed labeler standards:
    Type declaration:
    16 = Numbers of bottle support
    780 = Diameter of bottle turn plate
    1RA = Numbers of label-roll dispenser
    Machine type include:
    1. Rotary drive mechanism
    infeed-screw, star wheels, infeed guide plate, bottle guiding parts are produced of noise reducing and nonabrasive synthetic material. Rotation positioning device, bottle support, timing belt
    1. Safety system
    2. Entire machine is covered by stainless steel
    3. Electrical head adjustment for bottle size
    4. SIEMENS driver
    5. Stainless steel electric cabinet equipped with professional defrost air conditioner, SIEMENS true color touch screen, SIEMENS motion control system, import vacuum pump
    6. Labelling stations
    Labelling stations:
    		 Aggregate for labelling from the roll
    1. Label cutting unit:
    2. Labelling drum unit
    3. Label drive mechanism: SIEMENS servo motor
    4. Label inspection device: SUNX colour contrast sensor
    5. hot melt supplying device
    glue consumption:100,000 pieces/1kg(when label width is 50mm), single consumption: 1 piece/0.01g
    1. Labelling adjustment device: MAY planet decelerator
    Label dimensions:
    Minimum thickness: 0.035mm
    Minimum length: 160 mm
    Maximum length: 360 mm
    Maximum height: 180 mm
    Range of adjustment 16,000 BPH when label length 250mm
    Length of conveyor inside the machine
    		 2000 mm
    1. Machine is equipped with a frequency controller for external drive, which can be controlled via the machines control panel.
    1. Machine is in standard design not equipped with an internal drive for bottle conveyor.
    Electrical System:
    Drive Three phase 380V / 50HZ
    The drive is frequency controlled.
    Control voltage 220V AC,(240VAC, Single Phase, 50Hz)24 DV
    The electrical system is controlled by a programmable PLC
    Total power 10Kw
    Control panel Machine is equipped with firmly installed control panel
    Touch screen controlling
    control system for change over
    state of equipment, running parameters, system
    Performance is visually displayed.
    Control cabinet The electrical installation is in delivering conditions totally established and checked. The splash-proof switchbox is made of stainless steel, totally integrated into the machine and easy to access.
    Compressed air: Air pressure: 0.6MP
    Air consumption: 0.6m3/Min
    Lubrication: Drive, main and Star-wheel shafts, infeed screw bearing unit and all gear wheels in the substructure are lubricated via a central lubrication strip.
    Safety system:
    1. Safety: Reduced noise and casualty insurance is guaranteed by complete and elegant protective covering. Machine can be slowly jogged for maintenance and adjustment works.
    2. Safety protection door
    Function:
    1. During operation the machine is working in full automatic mode. Start and Stop, unload and queuing system, frequency controlled speed regulation; label-stop is included and standard.
    2. precise labelling
    3. synchronization belt and cam french curve control rotation of bottle. It is suitable for round, square, oval etc. anomalous bottle
    4. Bottle support is designed for change over in 3 seconds.
    5. Glue roller: netlike idler wheel is stable and reliable to guarantee a perfect gluing and lowers the glue consumption.
    6. Brushing: Each single brush is mounted on a supporting ring, which can be switched totally for each kind of bottle.
    7. Cutting: cutting precision is accurated to within +/- 1mm, the error will be compensated after each lable is cutted to eliminate cumulative error.
    1. Controls: The operating device is ordered openly and well within reach. Performance is visually displayed.
    2. Change over: No tools are needed for change over. The change over is easily reproducible.
    3. Materials: Infeed screw, infeed guide plate, star wheels and bottle guiding parts are produced of noise reducing and nonabrasive synthetic material.
    4. Substructure: The machines substructure consists of a strong mechanical design of steel with adjustable legs. The complete basic rack is covered with stainless steel.
  18. Rate of label waste: ≤1‰
  19. Efficiency: ≥90%
  20. Deviation of label head and tail: ±1.5mm
  21. Deviation of label up-down position: ±1mm
  22. Deviation of position labelling: ±2mm
  23. Rate of label defect: <1‰
  24. Label cutting accuracy: ±1mm
